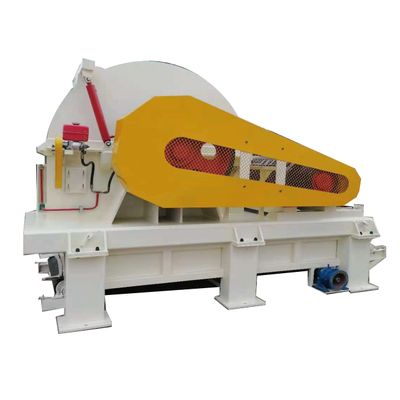

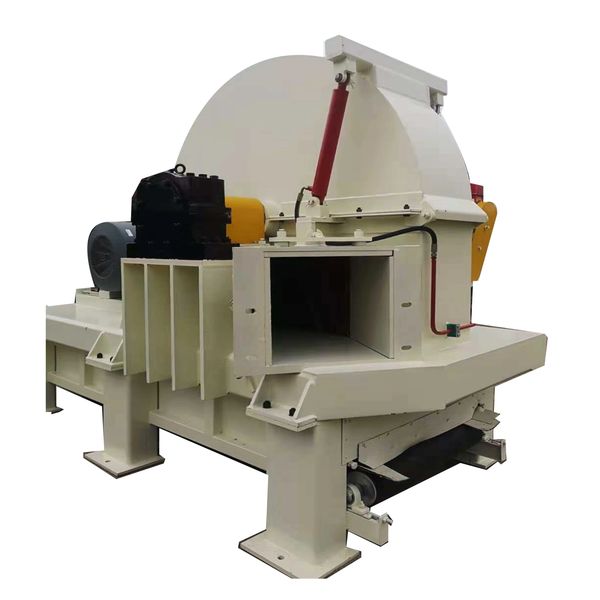

Disc Wood Chipper
US$10,000.00
The disc wood chipper features an advanced disc cutting system, efficiently converting logs, wood blocks, and branches into uniform, clean wood chips. It is ideal for papermaking, biomass fuel production, power plants, and wood processing industries, offering compact structure, easy operation, stable output, and high-quality chips.
Product Parameters
Technical Dimensions
- Disc Diameter: 1300–1800 mm
- Feed Opening (W×H): 330×350 / 420×420 / 500×500 mm
- Feed Belt Size (L×W×T): 8000×400×10 mm
- Discharge Belt Size (L×W×T): 10000×800×10 mm
- Feed Speed: 58 m/min
- Discharge Speed: 72 m/min
Power Configuration
- Main Motor Power: 110–250 kW
- Feed Motor Power: 4 kW
- Discharge Motor Power: 3+7.5 / 5.5 kW
Transmission System
- Main Engine Transmission: Belt Wheel Drive
- Discharge Belt: Mid Drive
- Blade Number: 6
